CAD Design Service

Our CAD design consultants offer a range of CAD design services either to supplement the work of your current design team, or to work separately on new projects or a new product development.



CAD design services offered by Root4 include 2D drafting, 3D modelling of new product ideas, or full assembly of a range of components in a system. Within the assembly space motion studies and system operational parameters can be checked virtually before going to prototype manufacture. Additional analysis can be carried out in the virtual space, including FEA and fluid flow simulation.

2D Component Drafting

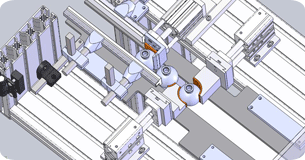

Machine Design



Design Powered By SolidWorks  3D CAD Design Service

Root4's CAD design consultants will work with maximum efficiency in Solidworks CAD software to ensure you get the maximum output for your money. Quotations are usually generated on a complete project basis, however, our CAD design services can also be provided at a rate chargeable by the hour.



Our CAD design consultants rates will vary depending on the nature of the project and the level of CAE required, typically between £30-£55 per hour.



No matter what rate arrangement you prefer we always aim for a transparent working partnership that makes financial business sense for both parties, and we can often tailor our CAD design services to your company requirements.



Please contact Root4 to discuss your requirements and how our CAD design services can benefit your business.
